Kaiser Book Holder 44/41 - Fotospeed
Kaiser Book Holder 44/41
Kaiser
Book Holder

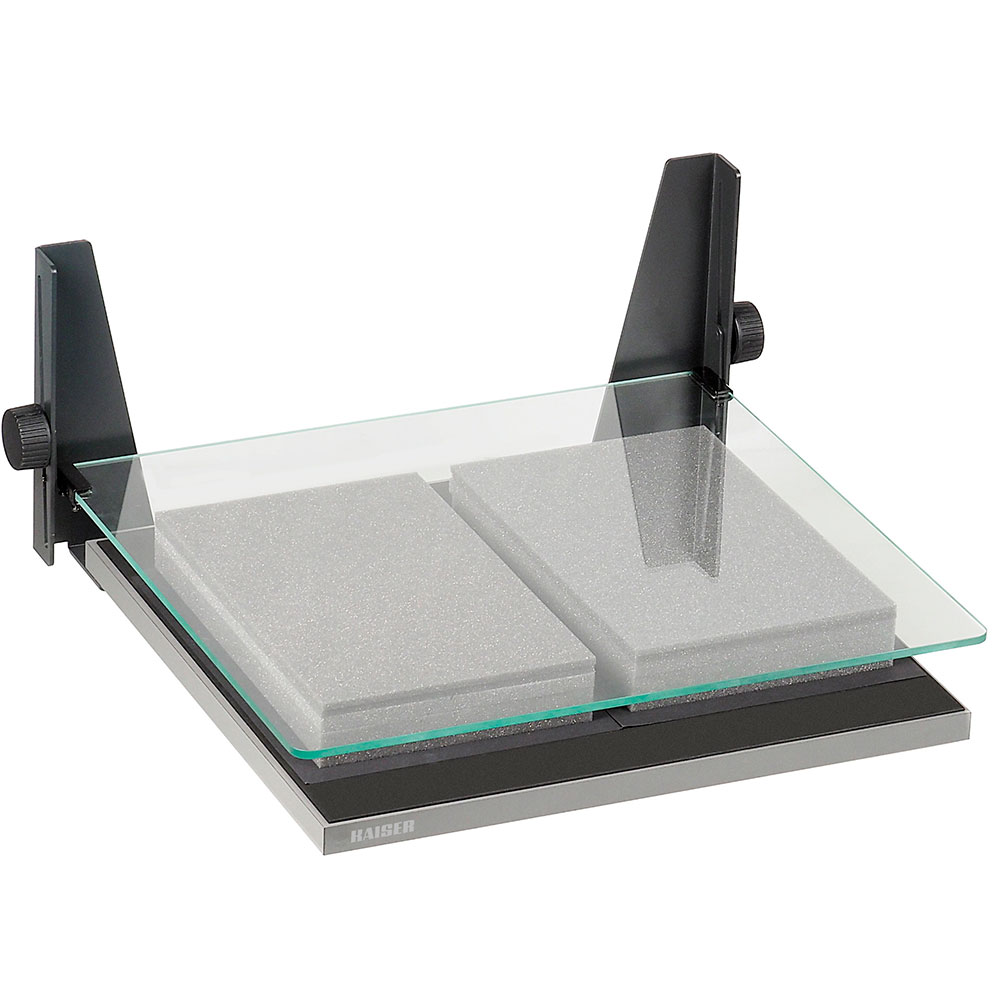

Kaiser K5771 Book Holder 44/41
A dedicated holding device for accurately positioning books, magazines and newspapers during copy work. The K5771 combines a solid non-slip base with a foldable, height-adjustable 6 mm crystal-glass pressure plate and preformed foam supports for compensating different book thicknesses. It accommodates originals up to 44 × 41 cm and a maximum height of 145 mm, while eight preformed foam elements in three thicknesses help compensate for height differences across an open book.
Up to 44 × 41 cm
Suitable for books, magazines, newspapers and other originals with formats up to 44 × 41 cm / 17.3 × 16.1 in.
Adjustable glass pressure plate
The 6 mm crystal-glass pressure plate folds open and can be locked at working heights between 0 and 145 mm.
Foam height compensation
Eight preformed foam elements in three thicknesses help compensate for differences in height across an open book.
Glass pressure plate
Hold originals flat and accurately positioned
The K5771 uses a high-quality, colour-neutral crystal-glass pressure plate measuring 6 mm / 0.2 in. thick. It is designed to hold suitable originals flat during copying while maintaining accurate positioning.
The glass plate can be folded open and adjusted vertically. For more ergonomic and original-friendly working, it can be locked at any position between 0 and 145 mm / 5.7 in.
Pressure plate
Colour-neutral crystal glass
6 mm /
0.2 in. thick
Foldable design
Variable working height
Lockable from 0–145 mm
Original support
Adapt the support to different book thicknesses
Preformed foam elements
Foam elements measuring 28 × 18 cm are used beneath the book to compensate for height differences between the two sides.
Three thickness options
The included set contains 20 mm, 10 mm and 5 mm thick foam supports, allowing the support height to be built up as required.
Up to 145 mm original height
The holder accommodates books and other originals with a maximum height of 145 mm / 5.7 in.
Stable working platform
Non-slip support for secure positioning
Solid base plate
A substantial base plate provides the foundation for the complete
book-holder assembly.
Non-slip top surface
The upper surface incorporates a non-slip coating to help keep materials
and supports securely positioned.
Non-slip feet
Non-slip feet underneath the base help maintain stable positioning on
the working surface.
Compact working footprint
Overall dimensions are approximately 52.9 × 22.6 × 44.4 cm.
Reduce show-through
Black backing sheets included
Black cardboard sheets can be placed beneath the page being copied to help prevent printing or imagery on the reverse or underlying page from showing through the paper.
Included backing sheets
2
black cardboard sheets
A4
format
29.7 ×
21 cm / 11.7 × 8.3 in.
Additional applications
Suitable for contact-printing work
In a photographic darkroom, Kaiser also specifies the K5771 for making contact prints from negatives onto photographic paper and for alternative photographic processes that use contact printing.
K5771
Technical specification
Product
Book Holder
44/41
Maximum format
44 × 41 cm / 17.3 ×
16.1 in.
Maximum original
height
145 mm / 5.7
in.
Glass
thickness
6 mm / 0.2
in.
Overall
dimensions
52.9 × 22.6 × 44.4
cm
Overall dimensions
(imperial)
20.8 × 8.9 × 17.5
in.
Foam elements
8
included
Black backing
sheets
2 × A4
included
Included with K5771
Foam supports & backing sheets
Supplied with 8 preformed 28 × 18 cm foam elements: 2 × 20 mm, 2 × 10 mm and 4 × 5 mm thick. Two black A4 cardboard sheets measuring 29.7 × 21 cm are also included.
Compatible accessory
Kaiser lists the K5768 Foot Pedal Shutter Release for Cameras as an accessory for the K5771 Book Holder 44/41.
