Kaiser RSP rePRO Column with Camera Platform. - Fotospeed
Kaiser RSP rePRO Column with Camera Platform.
rePRO System RSP
Kaiser K5612 RSP 1.5 Column

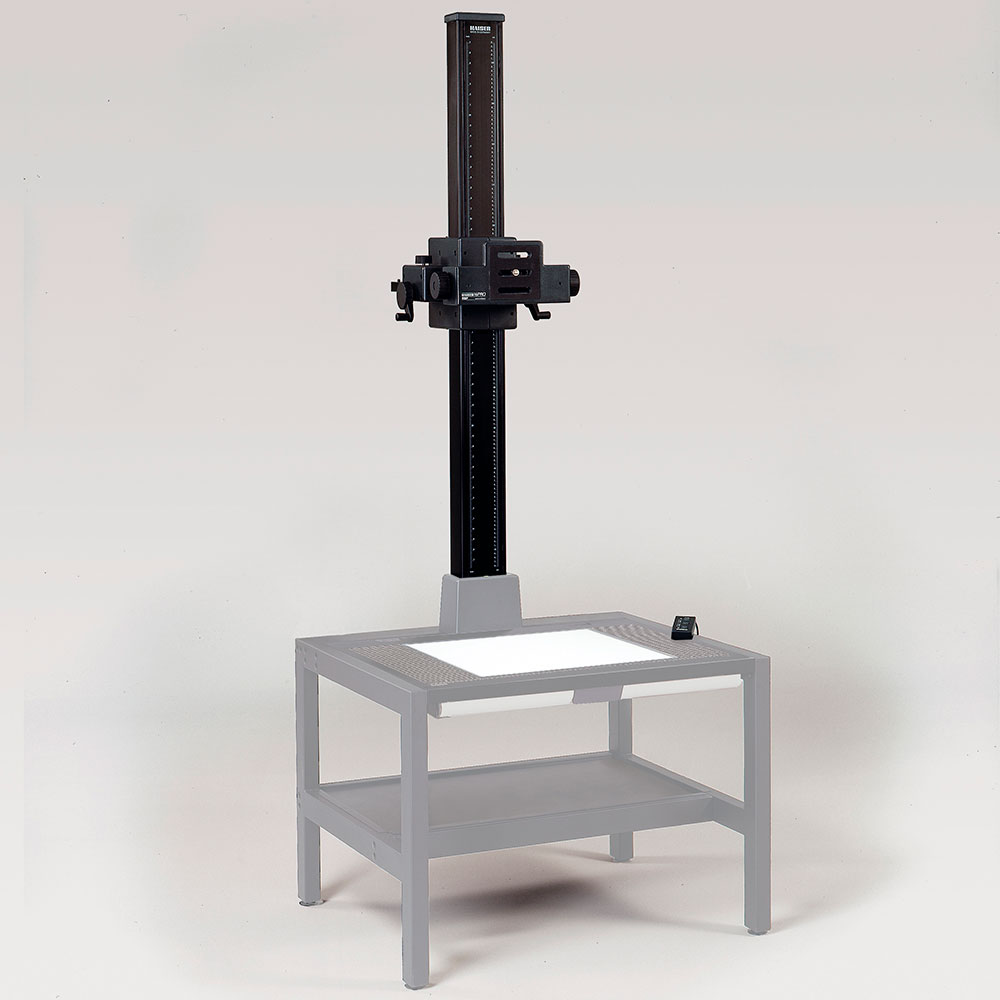

A motorised 150 cm reproduction column designed for precise, controlled and repeatable camera positioning in professional copy and digitisation workflows. The K5612 combines two-speed height adjustment, a self-limiting worm-gear drive and a horizontally adjustable camera platform, while supporting a substantial maximum load of approximately 15 kg for larger camera and reproduction setups.
Motorised movement
Two adjustment speeds
Motorised height adjustment operates at two speeds, with a constant adjustment rate independent of the applied load.
Position holding
Self-limiting worm gear
The worm-gear drive holds the selected height position precisely once movement stops.
Load capacity
Up to approx. 15 kg
The camera carrier is designed for a maximum load of approximately 15 kg, supporting substantial reproduction camera setups.
Motorised vertical control
Precise height positioning
Height adjustment is fully motorised and provides two travel speeds. The adjustment speed remains constant regardless of load, while a self-limiting worm-gear mechanism ensures the selected height is held precisely.
Automatic end switching is controlled by magnetic sensors, and operation is handled using the supplied cable remote control. The 150 cm column is made from special black-anodised aluminium tubing and carries printed centimetre and inch scales.
Column features
Motorised height adjustment
Two
travel speeds
Constant speed independent of load
Automatic magnetic end switch
Cable
remote control
Camera positioning
Adjustable in horizontal and angular position
Horizontal adjustment
The camera platform moves horizontally on parallel guides using a friction drive, with hand cranks provided for either right- or left-hand operation.
±90° camera platform
The 13 × 13 cm camera mounting plate can be tilted through ±90° for flexible camera orientation.
Secure alignment
Two locking screws secure the horizontal position, while a built-in spirit level assists with accurate setup and alignment.
K5612
Technical specification
Column height
150 cm / 60
in.
Maximum load
Approx. 15 kg / 33
lbs.
Camera
platform
13 × 13 cm / 5.1 × 5.1
in.
Camera platform
tilt
±90°
Mounting
thread
Exchangeable 1/4 in. /
3/8 in.
Height
adjustment
Motorised, two
speeds
A modular motorised column for the Kaiser rePRO system. The K5612 combines a 150 cm working column, approximately 15 kg load capacity and independently adjustable camera platform, with compatible base stands, wall mounting, base boards and lighting available separately.
SKU
CODE:K5612
rePRO System RSP
Kaiser K5612 RSP 1.5 Column
A motorised 150 cm reproduction column designed for precise, controlled and repeatable camera positioning in professional copy and digitisation workflows. The K5612 combines two-speed height adjustment, a self-limiting worm-gear drive and a horizontally adjustable camera platform, while supporting a substantial maximum load of approximately 15 kg for larger camera and reproduction setups.
Motorised movement
Two adjustment speeds
Motorised height adjustment operates at two speeds, with a constant adjustment rate independent of the applied load.
Position holding
Self-limiting worm gear
The worm-gear drive holds the selected height position precisely once movement stops.
Load capacity
Up to approx. 15 kg
The camera carrier is designed for a maximum load of approximately 15 kg, supporting substantial reproduction camera setups.
Motorised vertical control
Precise height positioning
Height adjustment is fully motorised and provides two travel speeds. The adjustment speed remains constant regardless of load, while a self-limiting worm-gear mechanism ensures the selected height is held precisely.
Automatic end switching is controlled by magnetic sensors, and operation is handled using the supplied cable remote control. The 150 cm column is made from special black-anodised aluminium tubing and carries printed centimetre and inch scales.
Column features
Motorised height adjustment
Two
travel speeds
Constant speed independent of load
Automatic magnetic end switch
Cable
remote control
Camera positioning
Adjustable in horizontal and angular position
Horizontal adjustment
The camera platform moves horizontally on parallel guides using a friction drive, with hand cranks provided for either right- or left-hand operation.
±90° camera platform
The 13 × 13 cm camera mounting plate can be tilted through ±90° for flexible camera orientation.
Secure alignment
Two locking screws secure the horizontal position, while a built-in spirit level assists with accurate setup and alignment.
K5612
Technical specification
Column height
150 cm / 60
in.
Maximum load
Approx. 15 kg / 33
lbs.
Camera
platform
13 × 13 cm / 5.1 × 5.1
in.
Camera platform
tilt
±90°
Mounting
thread
Exchangeable 1/4 in. /
3/8 in.
Height
adjustment
Motorised, two
speeds
A modular motorised column for the Kaiser rePRO system. The K5612 combines a 150 cm working column, approximately 15 kg load capacity and independently adjustable camera platform, with compatible base stands, wall mounting, base boards and lighting available separately.
