Kaiser RSX Copy Stand with RTX camera arm - Fotospeed
Kaiser RSX Copy Stand with RTX camera arm
RSX Copy
Stand

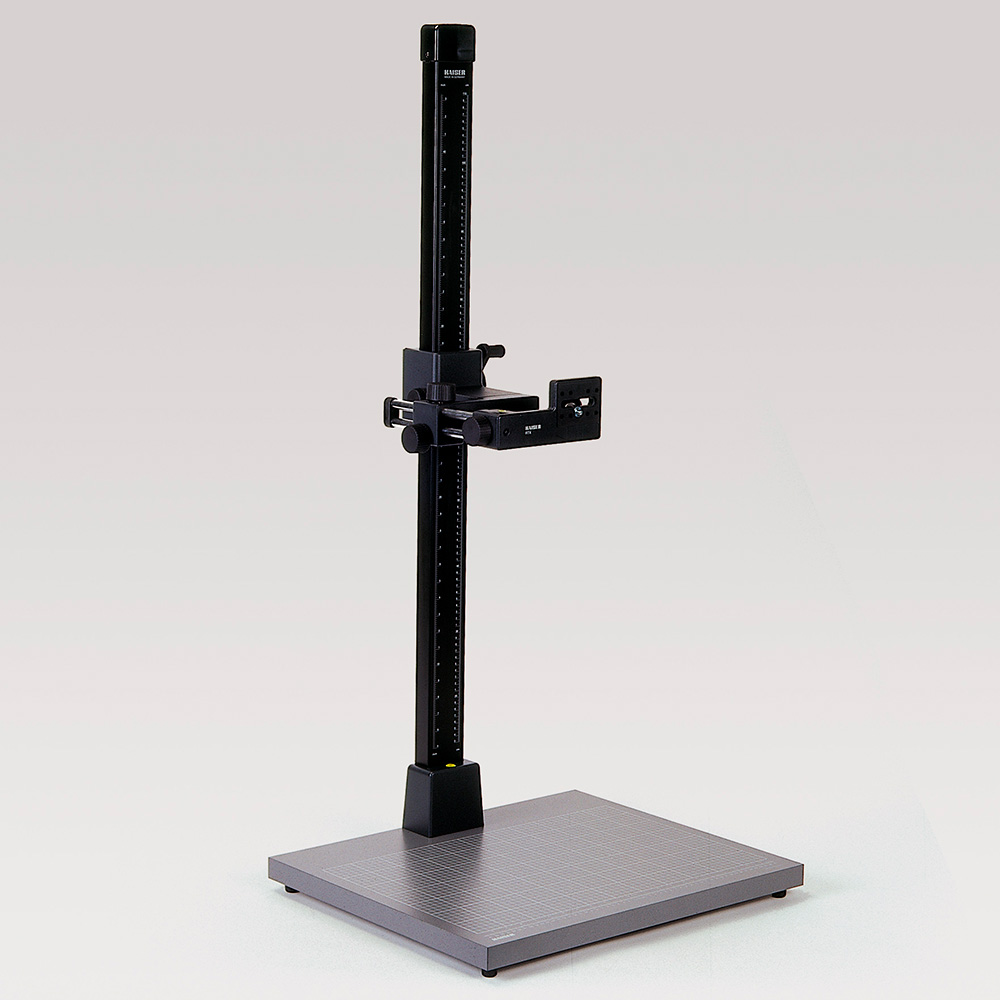

Kaiser K5512 RSX with RTX Camera Arm
The Kaiser K5512 RSX combines a large non-reflective matt grey baseplate with an especially wide, low-vibration aluminium column and hand-cranked rack-and-pinion height adjustment. The RTX camera arm adds rotating, tilting and finely adjustable camera positioning for a wide range of reproduction work. Its camera carrier rotates through ±90°, can be locked securely in position and offers horizontal fine adjustment, while the complete arm can also be tilted for reproduction of vertically positioned subjects.
Rotating camera carrier
The RTX camera carrier rotates through ±90° and can be locked securely in any position.
Fine horizontal adjustment
Parallel guides provide horizontal camera adjustment with fine control for accurate positioning.
Tiltable RTX arm
The complete copy and titling arm can be tilted to allow reproduction of vertically positioned subjects.
Flexible & precise
Advanced positioning with the RTX camera arm
The RTX camera carrier can be rotated through ±90° and locked in any position. An integrated spirit level assists with fine alignment, while the camera mount can be adjusted horizontally using parallel guides with fine adjustment.
The camera can be mounted on either the inside or outside of the carrier. When mounted on the inside for landscape-format work, the resulting images are not upside-down, which Kaiser notes is particularly convenient for comic, animation and stop-motion film applications.
Height adjustment is operated by hand crank and rack, with additional weight compensation from an integrated coil spring. A blocking screw prevents accidental changes to the selected height, while the column can also be mounted rotated through 180°.
Key details
RTX
camera arm
±90°
rotating camera carrier
Horizontal fine adjustment
Inside
or outside camera mounting
Tiltable for vertical subjects
K5512
Technical specification
Base board
Approx. 600 × 500 × 32
mm
Base board
(imperial)
23.6 × 19.7 × 1.3
in.
Column height
Approx. 1.20 m / 4
ft.
Maximum load
3.5 kg / 7.7
lbs.
Camera arm
RTX
(5522)
Carrier
rotation
±90°
Camera
connection
1/4 in. / 3/8
in.
Height
adjustment
Hand crank &
rack
Weight
compensation
Integrated coil
spring
Flexible positioning for demanding reproduction work. The RTX camera carrier combines ±90° rotation, horizontal fine adjustment and a tiltable copy arm, with an integrated spirit level assisting precise camera alignment.
SKU
CODE:K5512
RSX Copy
Stand
Kaiser K5512 RSX with RTX Camera Arm
The Kaiser K5512 RSX combines a large non-reflective matt grey baseplate with an especially wide, low-vibration aluminium column and hand-cranked rack-and-pinion height adjustment. The RTX camera arm adds rotating, tilting and finely adjustable camera positioning for a wide range of reproduction work. Its camera carrier rotates through ±90°, can be locked securely in position and offers horizontal fine adjustment, while the complete arm can also be tilted for reproduction of vertically positioned subjects.
Rotating camera carrier
The RTX camera carrier rotates through ±90° and can be locked securely in any position.
Fine horizontal adjustment
Parallel guides provide horizontal camera adjustment with fine control for accurate positioning.
Tiltable RTX arm
The complete copy and titling arm can be tilted to allow reproduction of vertically positioned subjects.
Flexible & precise
Advanced positioning with the RTX camera arm
The RTX camera carrier can be rotated through ±90° and locked in any position. An integrated spirit level assists with fine alignment, while the camera mount can be adjusted horizontally using parallel guides with fine adjustment.
The camera can be mounted on either the inside or outside of the carrier. When mounted on the inside for landscape-format work, the resulting images are not upside-down, which Kaiser notes is particularly convenient for comic, animation and stop-motion film applications.
Height adjustment is operated by hand crank and rack, with additional weight compensation from an integrated coil spring. A blocking screw prevents accidental changes to the selected height, while the column can also be mounted rotated through 180°.
Key details
RTX
camera arm
±90°
rotating camera carrier
Horizontal fine adjustment
Inside
or outside camera mounting
Tiltable for vertical subjects
K5512
Technical specification
Base board
Approx. 600 × 500 × 32
mm
Base board
(imperial)
23.6 × 19.7 × 1.3
in.
Column height
Approx. 1.20 m / 4
ft.
Maximum load
3.5 kg / 7.7
lbs.
Camera arm
RTX
(5522)
Carrier
rotation
±90°
Camera
connection
1/4 in. / 3/8
in.
Height
adjustment
Hand crank &
rack
Weight
compensation
Integrated coil
spring
Flexible positioning for demanding reproduction work. The RTX camera carrier combines ±90° rotation, horizontal fine adjustment and a tiltable copy arm, with an integrated spirit level assisting precise camera alignment.
