Kaiser Copylizer exe.cutive LED, Column 100cm. - Fotospeed
Kaiser Copylizer exe.cutive LED, Column 100cm.
Copylizer System

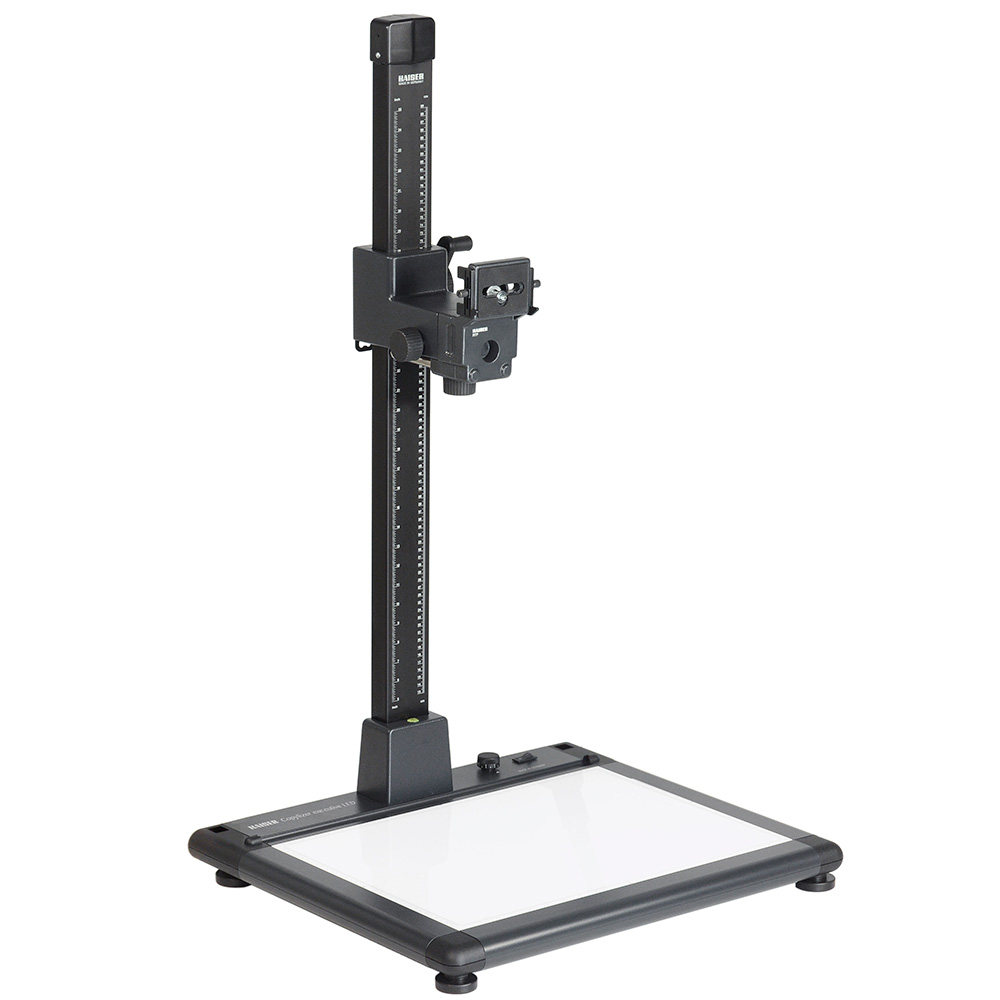

Kaiser K5215 Copylizer exe.cutive LED
A professional camera stand combining precise camera positioning with an integrated LED transmitted light source. The large Illumina base uses 504 daylight balanced SMD LEDs to provide a serviceable illuminated area of 50.6 × 36 cm, with continuously adjustable brightness and flicker free operation. It is ideal for precise copying, digitisation and reproduction work where consistent lighting and dependable camera alignment are essential.
504 LED Illumina base
Integrated transmitted illumination using 504 SMD LEDs provides a large, evenly illuminated working area.
5400 K · CRI >96
Daylight balanced illumination with a high colour rendering index supports accurate reproduction of colour and detail.
RTP camera arm
Horizontally adjustable camera platform with a camera body positioning device and interchangeable 1/4 in. and 3/8 in. threads.
Integrated transmitted light
Illumina LED base built into the copy stand
At the heart of the K5215 is Kaiser's Illumina base plate with 504 integrated SMD LEDs. Unlike a conventional copy stand baseboard, the working surface itself provides transmitted illumination for suitable originals.
The illuminated area measures 50.6 × 36 cm / 19.9 × 14.2 in., providing a working area larger than tabloid format. Brightness is continuously adjustable to suit different subjects and capture requirements.
Illumina LED
504 SMD LEDs
5400 K daylight
CRI >96
Approx. 13,000 cd/m²
Continuously dimmable
Flicker free operation
Illumination
Controlled light for reproduction
High colour rendering
A colour rendering index greater than 96 provides high quality light for photographic reproduction where faithful colour rendition is important.
Continuous dimming
Illumination brightness can be continuously adjusted rather than being restricted to fixed output levels.
Flicker free operation
Kaiser specifies flicker free LED operation for reliable use with digital image capture equipment.
Camera stand
Stable 1 metre reproduction column
70 mm wide aluminium column
High stability, vibration resistant column constructed from special aluminium tubing.
Matt black anodised finish
The column has a low reflection matt black anodised surface suitable for reproduction work.
Centimetre & inch scales
Measurement scales on the column provide a convenient reference for camera height.
Hand cranked height adjustment
Camera arm height is adjusted manually using a hand crank and friction drive mechanism.
Plastic bearing friction drive
The height adjustment mechanism operates by friction drive running on plastic bearings.
Integrated coil spring compensation
A built in coil spring provides weight compensation for the camera arm.
RTP camera arm
Flexible camera positioning
The K5215 is equipped with Kaiser's RTP camera arm. Its camera platform can be adjusted horizontally, providing additional control over camera position relative to the illuminated base.
A camera body positioning device assists with setup, while interchangeable 1/4 in. and 3/8 in. mounting threads accommodate compatible photographic equipment.
Camera mounting
RTP camera arm
Horizontally adjustable platform
Camera body positioning device
1/4 in. & 3/8 in. threads
Approx. 4 kg maximum load
Illumina base
Large illuminated working area
63 × 55 cm base
The complete Illumina base measures approximately 63 × 55 cm / 24.8 × 21.7 in.
Height adjustable feet
Adjustable feet allow the base to be levelled when installed on the working surface.
Integrated spirit level
A spirit level built into the base assists with accurate levelling of the complete stand.
Expand the system
Add surface illumination
In addition to the integrated transmitted light source, the K5215 incorporates mounting fixtures for compatible Kaiser Copylizer surface lighting units. This allows the system to be configured for transmitted light and surface lit reproduction applications.
K5278
RB 5270 DX
K5269
RB 5240D
K5282
RB 521 AB
K5284
RB 525 AS
K5215
Technical specification
Product
Copylizer exe.cutive LED
Illumina base
63 × 55 cm
Illumina base (imperial)
24.8 × 21.7 in.
Illuminated area
50.6 × 36 cm
Column height
1 m / 40 in.
Column width
70 mm / 2.8 in.
LEDs
504 SMD LEDs
Colour temperature
5400 K
Colour rendering
CRI >96
Luminance
Approx. 13,000 cd/m²
Maximum camera load
Approx. 4 kg / 8.8 lbs.
Camera threads
1/4 in. & 3/8 in.
Copylizer accessories
Additional working surface accessories
Kaiser also lists the K5292 Pressure Plate and K5294 Metal Plate as compatible accessories for the Copylizer and Illumina Base exe.cutive system. Surface lighting units and these accessories are available separately.
Integrated lighting system
Unlike a conventional copy stand, the K5215 incorporates its own transmitted light source directly into the base. Optional Kaiser Copylizer lighting units can be added separately when surface illumination is also required.
SKU
CODE:K5215
Copylizer System
Kaiser K5215 Copylizer exe.cutive LED
A professional camera stand combining precise camera positioning with an integrated LED transmitted light source. The large Illumina base uses 504 daylight balanced SMD LEDs to provide a serviceable illuminated area of 50.6 × 36 cm, with continuously adjustable brightness and flicker free operation. It is ideal for precise copying, digitisation and reproduction work where consistent lighting and dependable camera alignment are essential.
504 LED Illumina base
Integrated transmitted illumination using 504 SMD LEDs provides a large, evenly illuminated working area.
5400 K · CRI >96
Daylight balanced illumination with a high colour rendering index supports accurate reproduction of colour and detail.
RTP camera arm
Horizontally adjustable camera platform with a camera body positioning device and interchangeable 1/4 in. and 3/8 in. threads.
Integrated transmitted light
Illumina LED base built into the copy stand
At the heart of the K5215 is Kaiser's Illumina base plate with 504 integrated SMD LEDs. Unlike a conventional copy stand baseboard, the working surface itself provides transmitted illumination for suitable originals.
The illuminated area measures 50.6 × 36 cm / 19.9 × 14.2 in., providing a working area larger than tabloid format. Brightness is continuously adjustable to suit different subjects and capture requirements.
Illumina LED
504 SMD LEDs
5400 K daylight
CRI >96
Approx. 13,000 cd/m²
Continuously dimmable
Flicker free operation
Illumination
Controlled light for reproduction
High colour rendering
A colour rendering index greater than 96 provides high quality light for photographic reproduction where faithful colour rendition is important.
Continuous dimming
Illumination brightness can be continuously adjusted rather than being restricted to fixed output levels.
Flicker free operation
Kaiser specifies flicker free LED operation for reliable use with digital image capture equipment.
Camera stand
Stable 1 metre reproduction column
70 mm wide aluminium column
High stability, vibration resistant column constructed from special aluminium tubing.
Matt black anodised finish
The column has a low reflection matt black anodised surface suitable for reproduction work.
Centimetre & inch scales
Measurement scales on the column provide a convenient reference for camera height.
Hand cranked height adjustment
Camera arm height is adjusted manually using a hand crank and friction drive mechanism.
Plastic bearing friction drive
The height adjustment mechanism operates by friction drive running on plastic bearings.
Integrated coil spring compensation
A built in coil spring provides weight compensation for the camera arm.
RTP camera arm
Flexible camera positioning
The K5215 is equipped with Kaiser's RTP camera arm. Its camera platform can be adjusted horizontally, providing additional control over camera position relative to the illuminated base.
A camera body positioning device assists with setup, while interchangeable 1/4 in. and 3/8 in. mounting threads accommodate compatible photographic equipment.
Camera mounting
RTP camera arm
Horizontally adjustable platform
Camera body positioning device
1/4 in. & 3/8 in. threads
Approx. 4 kg maximum load
Illumina base
Large illuminated working area
63 × 55 cm base
The complete Illumina base measures approximately 63 × 55 cm / 24.8 × 21.7 in.
Height adjustable feet
Adjustable feet allow the base to be levelled when installed on the working surface.
Integrated spirit level
A spirit level built into the base assists with accurate levelling of the complete stand.
Expand the system
Add surface illumination
In addition to the integrated transmitted light source, the K5215 incorporates mounting fixtures for compatible Kaiser Copylizer surface lighting units. This allows the system to be configured for transmitted light and surface lit reproduction applications.
K5278
RB 5270 DX
K5269
RB 5240D
K5282
RB 521 AB
K5284
RB 525 AS
K5215
Technical specification
Product
Copylizer exe.cutive LED
Illumina base
63 × 55 cm
Illumina base (imperial)
24.8 × 21.7 in.
Illuminated area
50.6 × 36 cm
Column height
1 m / 40 in.
Column width
70 mm / 2.8 in.
LEDs
504 SMD LEDs
Colour temperature
5400 K
Colour rendering
CRI >96
Luminance
Approx. 13,000 cd/m²
Maximum camera load
Approx. 4 kg / 8.8 lbs.
Camera threads
1/4 in. & 3/8 in.
Copylizer accessories
Additional working surface accessories
Kaiser also lists the K5292 Pressure Plate and K5294 Metal Plate as compatible accessories for the Copylizer and Illumina Base exe.cutive system. Surface lighting units and these accessories are available separately.
Integrated lighting system
Unlike a conventional copy stand, the K5215 incorporates its own transmitted light source directly into the base. Optional Kaiser Copylizer lighting units can be added separately when surface illumination is also required.
