Kaiser Book Holder 69/50 AR - Fotospeed
Kaiser Book Holder 69/50 AR
Kaiser
Book Holder

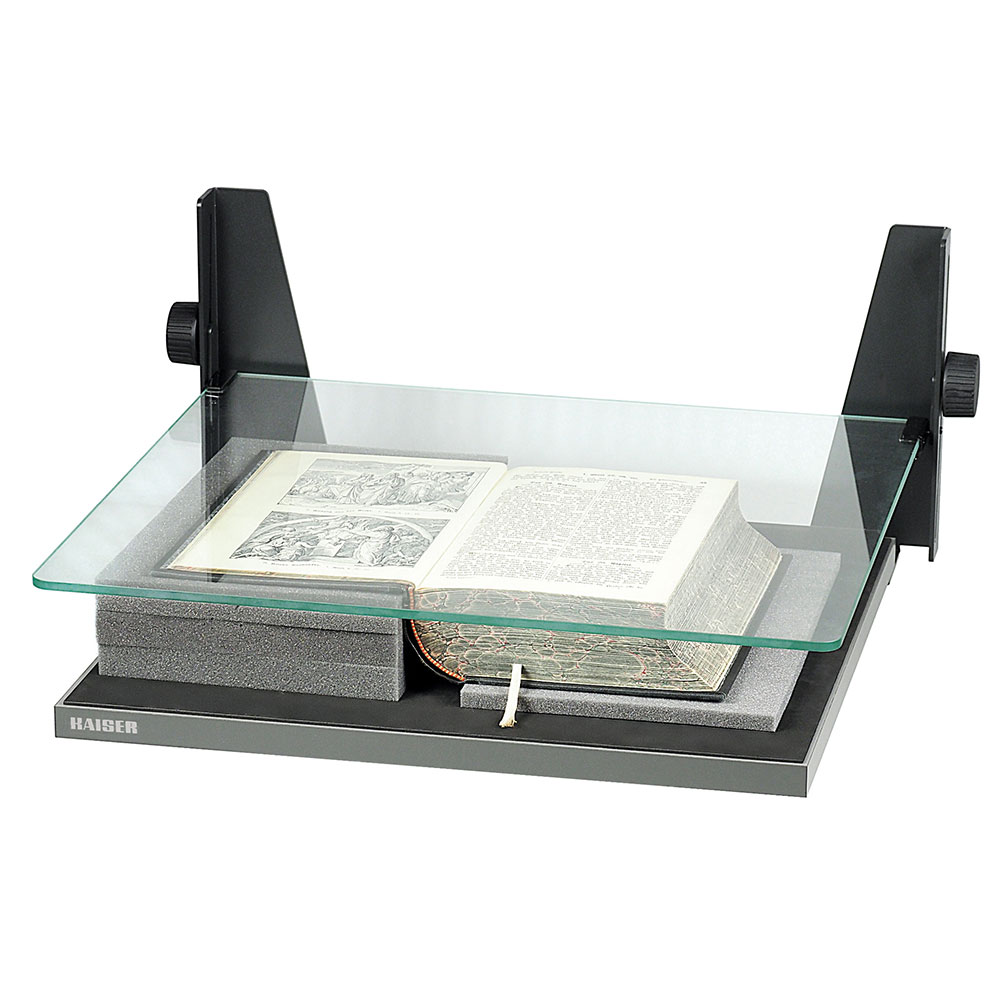

Kaiser K5774 Book Holder 69/50 AR
A large-format holding device for accurate positioning of books, magazines and newspapers during copy work. The K5774 combines a solid non-slip base with a foldable, height-adjustable extra-white glass pressure plate featuring anti-reflective coating on both sides.
Up to 69 × 50 cm
Suitable for large books, magazines and newspapers with formats up to 69 × 50 cm / 27.2 × 19.7 in.
Anti-reflective glass
Extra-white glass with optical anti-reflection coating on both sides provides high colour neutrality and minimal residual reflection.
Height compensation
Sixteen supplied foam elements in three thicknesses help compensate for different heights across open books and other bound originals.
Anti-reflective pressure plate
Flatten large originals while minimising reflections
The K5774 uses an extra-white glass pressure plate with an anti-reflective optical interference coating applied to both sides. Kaiser specifies high colour neutrality with residual reflection of less than 0.5%.
The 6 mm thick pressure plate can be folded open and adjusted vertically. It can be locked at any working height between 0 and 145 mm / 5.7 in. for more ergonomic and original-friendly handling.
Pressure plate
Extra-white glass
Anti-reflective coating both sides
Residual reflection <0.5%
6 mm /
0.2 in. thick
Lockable from 0–145 mm
Large-format originals
Designed for books and large newspapers
69 × 50 cm maximum format
The large working area accommodates originals measuring up to 69 × 50 cm / 27.2 × 19.7 in.
Newspaper reproduction
Kaiser specifically identifies the K5774 as suitable for opened Berlin-format and Swiss-format newspapers.
Up to 145 mm original height
Books and other originals with heights up to 145 mm / 5.7 in. can be accommodated beneath the pressure plate.
Original support
Foam support for uneven book thickness
16 preformed foam elements
A larger support set is supplied to accommodate the wider working area
of the K5774.
28 × 18 cm supports
Each foam support measures approximately 28 × 18 cm / 11 × 7.1 in.
Three thicknesses
Includes 20 mm, 10 mm and 5 mm thick elements for building up support as
required.
Compensate open-book height
The supports help level the two sides of an open book before the glass
pressure plate is lowered.
Stable support
Solid non-slip working platform
The Book Holder 69/50 AR uses a solid base plate with a non-slip coating on its upper surface and non-slip feet underneath, helping maintain secure positioning throughout copy work.
Base features
Solid
base plate
Non-slip upper surface
Non-slip feet
Reduce show-through
A4 and A3 black backing sheets included
Black cardboard sheets can be placed behind the page being copied to reduce show-through from printing or imagery on the reverse or underlying pages.
Included
2 × A4 sheets
29.7 × 21 cm / 11.7 × 8.3 in.
Included
2 × A3 sheets
42 × 29.7 cm / 16.5 × 11.7 in.
Additional application
Contact-printing work
Kaiser also specifies the book holder for photographic darkroom use, including contact printing negatives onto photographic paper and alternative photographic processes based on contact printing.
K5774
Technical specification
Product
Book Holder 69/50
AR
Maximum format
69 × 50 cm / 27.2 ×
19.7 in.
Maximum original
height
145 mm / 5.7
in.
Glass
thickness
6 mm / 0.2
in.
Overall
dimensions
76.9 × 22.6 × 55.4
cm
Overall dimensions
(imperial)
30.3 × 8.9 × 21.8
in.
Residual
reflection
<0.5%
Foam elements
16
included
Included with K5774
Foam supports & backing sheets
Supplied with 16 preformed foam elements: 4 × 20 mm, 4 × 10 mm and 8 × 5 mm thick. Four black cardboard backing sheets are also included: 2 × A4 and 2 × A3.
Compatible accessory
Kaiser lists the K5768 Foot Pedal Shutter Release for Cameras as an accessory for the K5774 Book Holder 69/50 AR.
SKU
CODE:K5774
Kaiser
Book Holder
Kaiser K5774 Book Holder 69/50 AR
A large-format holding device for accurate positioning of books, magazines and newspapers during copy work. The K5774 combines a solid non-slip base with a foldable, height-adjustable extra-white glass pressure plate featuring anti-reflective coating on both sides.
Up to 69 × 50 cm
Suitable for large books, magazines and newspapers with formats up to 69 × 50 cm / 27.2 × 19.7 in.
Anti-reflective glass
Extra-white glass with optical anti-reflection coating on both sides provides high colour neutrality and minimal residual reflection.
Height compensation
Sixteen supplied foam elements in three thicknesses help compensate for different heights across open books and other bound originals.
Anti-reflective pressure plate
Flatten large originals while minimising reflections
The K5774 uses an extra-white glass pressure plate with an anti-reflective optical interference coating applied to both sides. Kaiser specifies high colour neutrality with residual reflection of less than 0.5%.
The 6 mm thick pressure plate can be folded open and adjusted vertically. It can be locked at any working height between 0 and 145 mm / 5.7 in. for more ergonomic and original-friendly handling.
Pressure plate
Extra-white glass
Anti-reflective coating both sides
Residual reflection <0.5%
6 mm /
0.2 in. thick
Lockable from 0–145 mm
Large-format originals
Designed for books and large newspapers
69 × 50 cm maximum format
The large working area accommodates originals measuring up to 69 × 50 cm / 27.2 × 19.7 in.
Newspaper reproduction
Kaiser specifically identifies the K5774 as suitable for opened Berlin-format and Swiss-format newspapers.
Up to 145 mm original height
Books and other originals with heights up to 145 mm / 5.7 in. can be accommodated beneath the pressure plate.
Original support
Foam support for uneven book thickness
16 preformed foam elements
A larger support set is supplied to accommodate the wider working area
of the K5774.
28 × 18 cm supports
Each foam support measures approximately 28 × 18 cm / 11 × 7.1 in.
Three thicknesses
Includes 20 mm, 10 mm and 5 mm thick elements for building up support as
required.
Compensate open-book height
The supports help level the two sides of an open book before the glass
pressure plate is lowered.
Stable support
Solid non-slip working platform
The Book Holder 69/50 AR uses a solid base plate with a non-slip coating on its upper surface and non-slip feet underneath, helping maintain secure positioning throughout copy work.
Base features
Solid
base plate
Non-slip upper surface
Non-slip feet
Reduce show-through
A4 and A3 black backing sheets included
Black cardboard sheets can be placed behind the page being copied to reduce show-through from printing or imagery on the reverse or underlying pages.
Included
2 × A4 sheets
29.7 × 21 cm / 11.7 × 8.3 in.
Included
2 × A3 sheets
42 × 29.7 cm / 16.5 × 11.7 in.
Additional application
Contact-printing work
Kaiser also specifies the book holder for photographic darkroom use, including contact printing negatives onto photographic paper and alternative photographic processes based on contact printing.
K5774
Technical specification
Product
Book Holder 69/50
AR
Maximum format
69 × 50 cm / 27.2 ×
19.7 in.
Maximum original
height
145 mm / 5.7
in.
Glass
thickness
6 mm / 0.2
in.
Overall
dimensions
76.9 × 22.6 × 55.4
cm
Overall dimensions
(imperial)
30.3 × 8.9 × 21.8
in.
Residual
reflection
<0.5%
Foam elements
16
included
Included with K5774
Foam supports & backing sheets
Supplied with 16 preformed foam elements: 4 × 20 mm, 4 × 10 mm and 8 × 5 mm thick. Four black cardboard backing sheets are also included: 2 × A4 and 2 × A3.
Compatible accessory
Kaiser lists the K5768 Foot Pedal Shutter Release for Cameras as an accessory for the K5774 Book Holder 69/50 AR.
