Kaiser RB 521 AB Copylizer Lighting Unit - Fotospeed

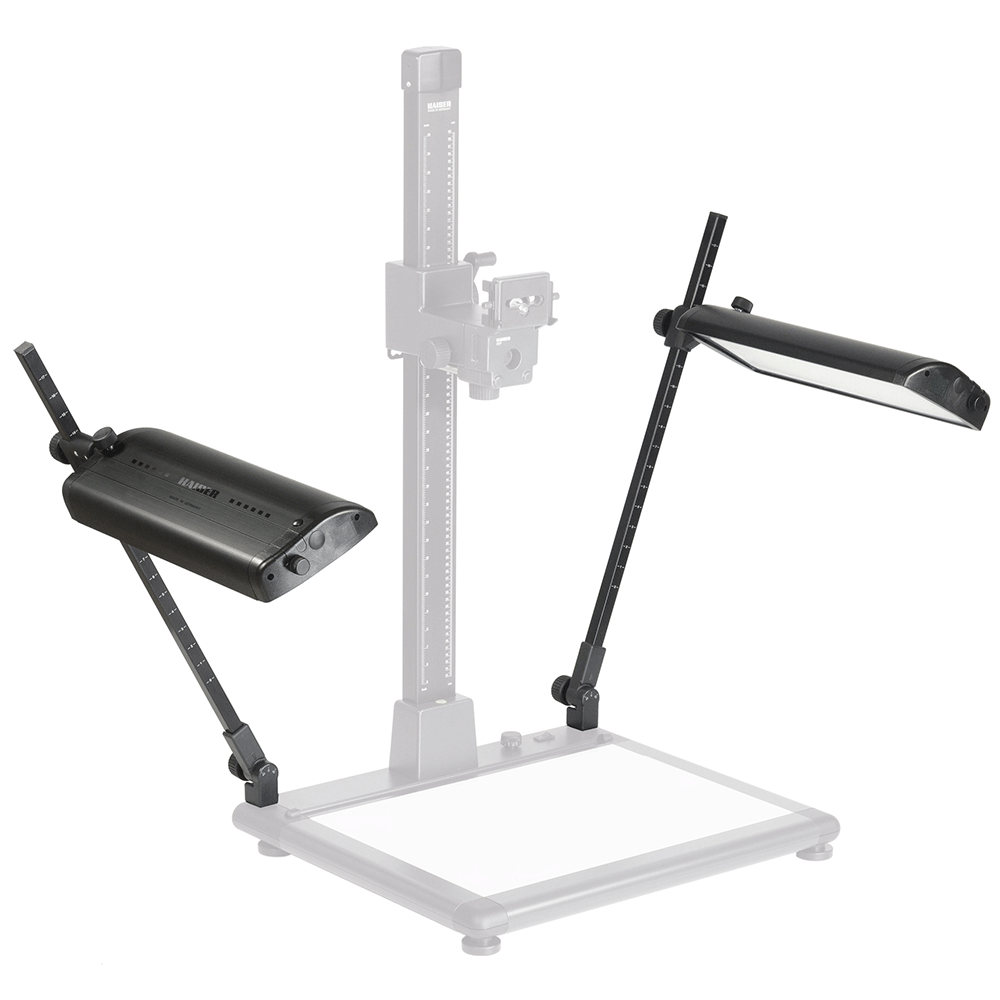

Kaiser RB 521 AB Copylizer Lighting Unit
The Kaiser K5282 RB 521 AB is a professional LED surface lighting unit designed to provide even, soft and colour-accurate illumination for photographic reproduction and digitisation. Its two independently dimmable light banks each use 192 selected white SMD LEDs, with flicker-free operation, removable soft screens and adjustable positioning for precise control of copy lighting.
Colour-accurate daylight
Each light uses 192 selected white SMD LEDs to produce 5600 Kelvin daylight with a colour rendition index of CRI 96.
Soft illumination
Detachable soft screens diffuse the LED output for smooth illumination, with up to 4600 lux available with the screens fitted.
Independent dimming
The two LED lights can be dimmed separately, allowing the illumination balance to be adjusted for different subjects and setups.
Flexible positioning
Each aluminium light housing can be swivelled, shifted and adjusted in height for precise control over the direction of illumination.
Light where it counts
Designed for accurate reproduction
The RB 521 AB uses two LED light banks, each equipped with 192 specially selected white SMD LEDs. They produce neutral 5600 Kelvin daylight with a CRI of 96, while constant-current drivers provide flicker-free operation and the emitted light contains no infrared or ultraviolet components.
The sturdy anodised aluminium light housings can be swivelled, shifted horizontally and adjusted in height. Detachable soft screens provide diffused illumination, while the height-marked vertical support arms can be tilted through defined detent positions to help establish controlled and repeatable lighting arrangements.
Ideal for
Archiving and reproduction
- —Historical documents and records
- —Photographs, prints and artwork
- —Books, maps and archive material
- —Colour-critical digitisation work
Key features
Twin LED light banks: two lights, each equipped with 192 specially selected white SMD LEDs.
High colour accuracy: 5600 Kelvin daylight with a colour rendition index of CRI 96.
Independent dimming: each LED light can be dimmed separately to control the balance of illumination.
Adjustable lighting: lamp housings can be swivelled, shifted and adjusted vertically.

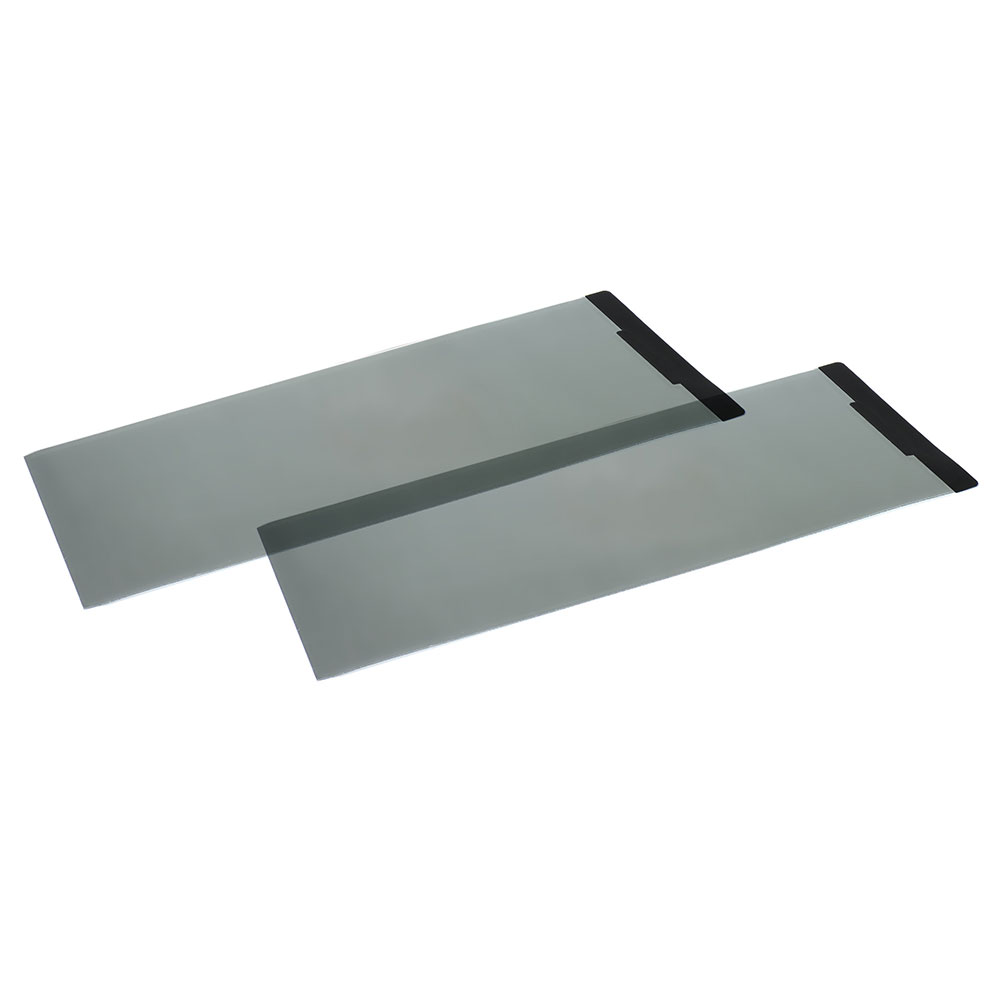

Detachable soft screens: removable diffusers provide softer illumination when required.
Passive cooling: the LED boards and lightweight metal housings provide effective passive thermal management.
K5282
Technical specification
LED arrays
2 × 192 SMD LEDs
Colour temperature
5600 K
Colour rendition
CRI 96
LED radiation angle
100°
Illumination with soft screen
4600 lux
Illumination without screen
5200 lux
Power consumption
2 × 24 W
Light-emitting area
39 × 16.5 cm per light
Vertical arms
76 cm / 29.9 in.
Mains leads
Approx. 2.40 m each
Professional lighting for Copylizer reproduction systems
The K5282 RB 521 AB is suitable for the Copylizer exe.cutive LED K5215 and Illumina Base exe.cutive LED K5244, and can also be used as a surface lighting unit with the TopTable PRO K5921 shooting table. Where an electrical Kaiser item is applicable, it will be supplied with a UK plug.
SKU
CODE:K5282
The Kaiser K5282 RB 521 AB is a professional LED surface lighting unit designed to provide even, soft and colour-accurate illumination for photographic reproduction and digitisation. Its two independently dimmable light banks each use 192 selected white SMD LEDs, with flicker-free operation, removable soft screens and adjustable positioning for precise control of copy lighting.
Colour-accurate daylight
Each light uses 192 selected white SMD LEDs to produce 5600 Kelvin daylight with a colour rendition index of CRI 96.
Soft illumination
Detachable soft screens diffuse the LED output for smooth illumination, with up to 4600 lux available with the screens fitted.
Independent dimming
The two LED lights can be dimmed separately, allowing the illumination balance to be adjusted for different subjects and setups.
Flexible positioning
Each aluminium light housing can be swivelled, shifted and adjusted in height for precise control over the direction of illumination.
Light where it counts
Designed for accurate reproduction
The RB 521 AB uses two LED light banks, each equipped with 192 specially selected white SMD LEDs. They produce neutral 5600 Kelvin daylight with a CRI of 96, while constant-current drivers provide flicker-free operation and the emitted light contains no infrared or ultraviolet components.
The sturdy anodised aluminium light housings can be swivelled, shifted horizontally and adjusted in height. Detachable soft screens provide diffused illumination, while the height-marked vertical support arms can be tilted through defined detent positions to help establish controlled and repeatable lighting arrangements.
Ideal for
Archiving and reproduction
- —Historical documents and records
- —Photographs, prints and artwork
- —Books, maps and archive material
- —Colour-critical digitisation work
Key features
Twin LED light banks: two lights, each equipped with 192 specially selected white SMD LEDs.
High colour accuracy: 5600 Kelvin daylight with a colour rendition index of CRI 96.
Independent dimming: each LED light can be dimmed separately to control the balance of illumination.
Adjustable lighting: lamp housings can be swivelled, shifted and adjusted vertically.
Detachable soft screens: removable diffusers provide softer illumination when required.
Passive cooling: the LED boards and lightweight metal housings provide effective passive thermal management.
K5282
Technical specification
LED arrays
2 × 192 SMD LEDs
Colour temperature
5600 K
Colour rendition
CRI 96
LED radiation angle
100°
Illumination with soft screen
4600 lux
Illumination without screen
5200 lux
Power consumption
2 × 24 W
Light-emitting area
39 × 16.5 cm per light
Vertical arms
76 cm / 29.9 in.
Mains leads
Approx. 2.40 m each
Professional lighting for Copylizer reproduction systems
The K5282 RB 521 AB is suitable for the Copylizer exe.cutive LED K5215 and Illumina Base exe.cutive LED K5244, and can also be used as a surface lighting unit with the TopTable PRO K5921 shooting table. Where an electrical Kaiser item is applicable, it will be supplied with a UK plug.
