Kaiser RS 1 Copy Stand with RT 1 copy and titling arm - Fotospeed
Kaiser RS 1 Copy Stand with RT 1 copy and titling arm
RS 1 Copy
Stand
Kaiser K5511 RS 1 with RT 1 Copy and Titling Arm

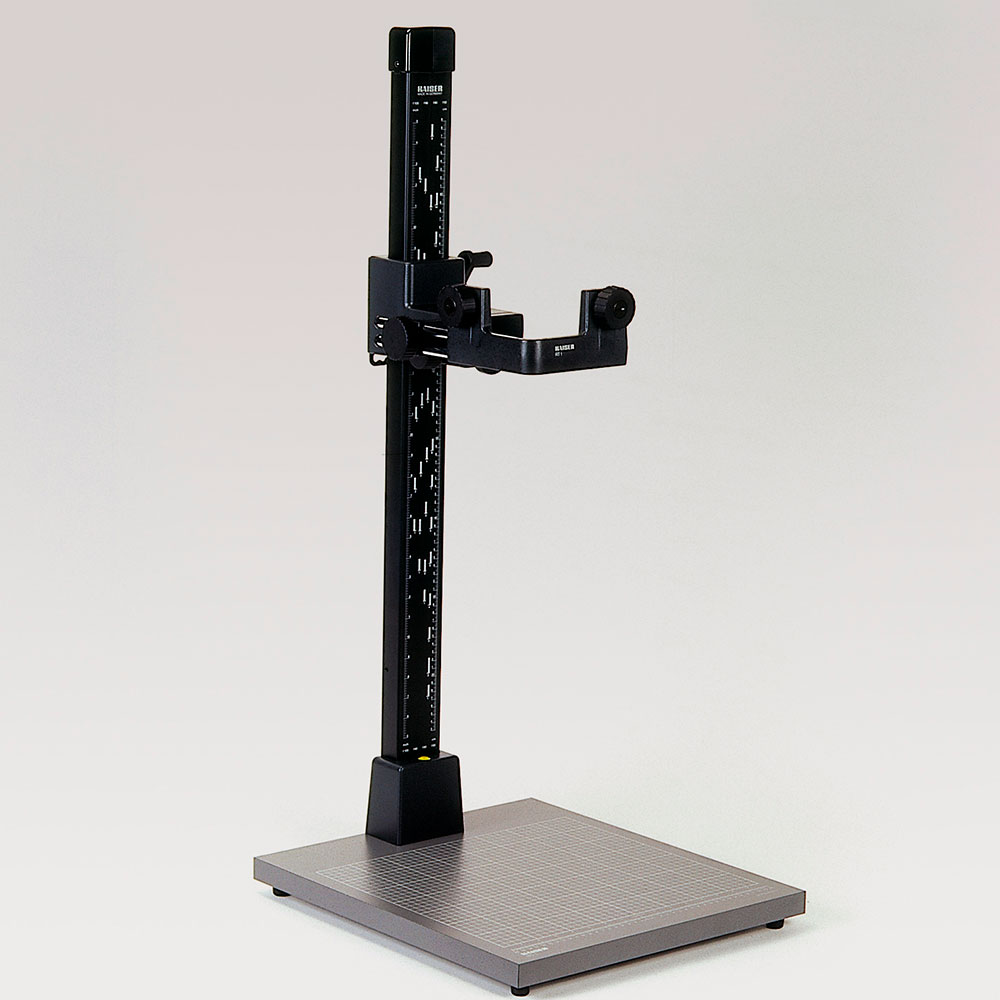

The Kaiser K5511 combines the RS 1 copy stand with the RT 1 copy and titling arm. It features a non-reflective matt grey base board, an extra-wide vibration-resistant aluminium column and two camera mounting points for portrait and landscape formats. The camera platform can be adjusted longitudinally and locked in position, while the complete arm can be tilted for reproduction of vertically positioned subjects. Hand-cranked height adjustment and a roll-off spring mechanism provide controlled movement along the column.
Portrait & landscape mounting
The RT 1 copy and titling arm provides two camera mounting points for working in portrait and landscape formats.
Longitudinal adjustment
A parallel guide allows the camera platform to be adjusted longitudinally and locked in any required position.
Tiltable arm
The complete copy and titling arm can be tilted to allow reproduction of vertically positioned subjects.
Flexible camera positioning
RT 1 copy and titling arm
The RT 1 provides separate camera mounting points for portrait and landscape orientation. When the camera is mounted on the inside of the carrier in landscape format, the resulting image is not upside-down, which Kaiser identifies as particularly convenient for comic, animation and stop-motion film work.
The camera platform is longitudinally adjustable by means of a parallel guide and can be locked in any position. The entire copy and titling arm is also tiltable, allowing the stand to be used for reproduction of vertical subjects.
Height adjustment is operated by hand crank using a friction drive on plastic bearings. A roll-off spring mechanism provides weight compensation as the carrier is moved along the approximately 1,000 mm column.
Key details
RT 1
copy and titling arm
Two
camera mounting points
Portrait & landscape formats
Lockable longitudinal adjustment
Tiltable for vertical subjects
K5511
Technical specification
Base board
Approx. 450 × 500 × 28
mm
Base board
(imperial)
17.7 × 19.7 × 1.1
in.
Column height
Approx. 1,000 mm /
39.4 in.
Maximum load
3 kg
Camera arm
RT 1 copy and titling
arm
Camera
mounting
Portrait &
landscape
Connecting
thread
Interchangeable 1/4
in. / 1/8 in.
Height
adjustment
Hand-cranked friction
drive
Weight
compensation
Roll-off spring
mechanism
Designed for flexible reproduction work. The camera platform can be adjusted longitudinally and locked in position, while the RT 1 arm can be tilted for reproduction of vertical subjects.
SKU
CODE:K5511
RS 1 Copy
Stand
Kaiser K5511 RS 1 with RT 1 Copy and Titling Arm
The Kaiser K5511 combines the RS 1 copy stand with the RT 1 copy and titling arm. It features a non-reflective matt grey base board, an extra-wide vibration-resistant aluminium column and two camera mounting points for portrait and landscape formats. The camera platform can be adjusted longitudinally and locked in position, while the complete arm can be tilted for reproduction of vertically positioned subjects. Hand-cranked height adjustment and a roll-off spring mechanism provide controlled movement along the column.
Portrait & landscape mounting
The RT 1 copy and titling arm provides two camera mounting points for working in portrait and landscape formats.
Longitudinal adjustment
A parallel guide allows the camera platform to be adjusted longitudinally and locked in any required position.
Tiltable arm
The complete copy and titling arm can be tilted to allow reproduction of vertically positioned subjects.
Flexible camera positioning
RT 1 copy and titling arm
The RT 1 provides separate camera mounting points for portrait and landscape orientation. When the camera is mounted on the inside of the carrier in landscape format, the resulting image is not upside-down, which Kaiser identifies as particularly convenient for comic, animation and stop-motion film work.
The camera platform is longitudinally adjustable by means of a parallel guide and can be locked in any position. The entire copy and titling arm is also tiltable, allowing the stand to be used for reproduction of vertical subjects.
Height adjustment is operated by hand crank using a friction drive on plastic bearings. A roll-off spring mechanism provides weight compensation as the carrier is moved along the approximately 1,000 mm column.
Key details
RT 1
copy and titling arm
Two
camera mounting points
Portrait & landscape formats
Lockable longitudinal adjustment
Tiltable for vertical subjects
K5511
Technical specification
Base board
Approx. 450 × 500 × 28
mm
Base board
(imperial)
17.7 × 19.7 × 1.1
in.
Column height
Approx. 1,000 mm /
39.4 in.
Maximum load
3 kg
Camera arm
RT 1 copy and titling
arm
Camera
mounting
Portrait &
landscape
Connecting
thread
Interchangeable 1/4
in. / 1/8 in.
Height
adjustment
Hand-cranked friction
drive
Weight
compensation
Roll-off spring
mechanism
Designed for flexible reproduction work. The camera platform can be adjusted longitudinally and locked in position, while the RT 1 arm can be tilted for reproduction of vertical subjects.
