Kaiser RSP Xtra autoDrive Column, 2.16 m, with motorised height-adjustable camera carrier. - Fotospeed
Kaiser RSP Xtra autoDrive Column, 2.16 m, with motorised height-adjustable camera carrier.
rePRO
System

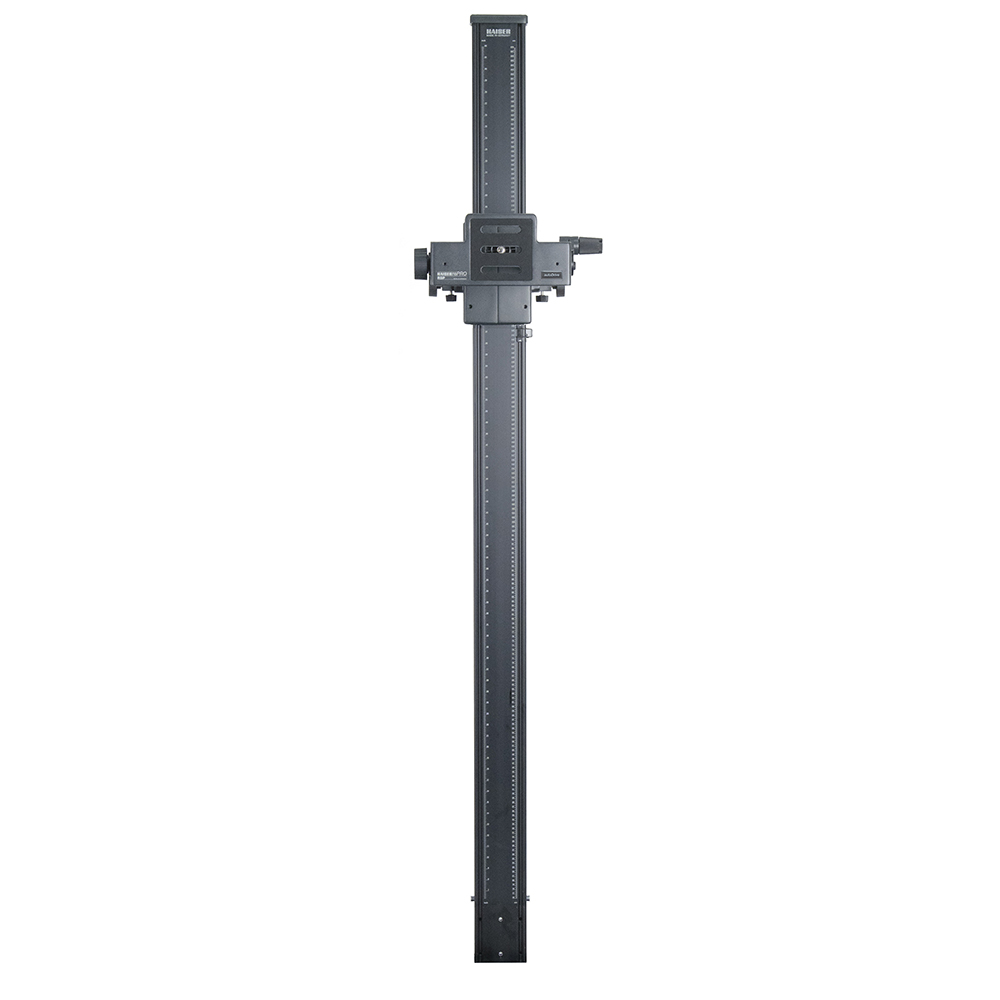

Kaiser K5725 RSP Xtra autoDrive Column
A professional motorised column for the Kaiser rePRO system, designed for precise and repeatable camera positioning. The camera carrier can be controlled from a PC or laptop using Kaiser autoDrive software, or directly from the supplied cable remote control. Stored height positions can be recalled with approximately 1/100 mm repeat accuracy, while the motorised camera carrier supports loads of approximately 15 kg for substantial professional reproduction camera setups.
Computer-controlled positioning
Motorised height adjustment can be controlled using the Kaiser autoDrive program from a connected PC or laptop.
Repeatable height positions
Stored height positions can be recalled with approximately 1/100 mm repeat accuracy for consistent camera placement.
Approx. 15 kg load
The camera carrier supports a maximum load of approximately 15 kg, accommodating substantial reproduction camera setups.
Kaiser autoDrive
Precise motorised height control
The cast aluminium camera carrier is moved vertically by a motorised drive. Adjustment speed remains constant regardless of load, while the self-limiting worm-gear mechanism holds the selected height position precisely.
Automatic end switching is controlled by magnetic sensors. The column can be operated from the Kaiser autoDrive control program or using the supplied cable remote control, which provides slow and fast travel speeds in both directions.
Control features
PC /
laptop control
Cable
remote control
Slow
& fast travel speeds
Four
directly storable height positions
Automatic magnetic limit stop
Emergency stop control
Camera carrier
Horizontal and angular adjustment
Horizontal adjustment
The camera carrier moves horizontally on specially shaped parallel guides using a gear rack and hand cranks for right- or left-hand operation.
±90° camera platform
The 13 × 13 cm camera mounting plate can be swivelled through ±90° and incorporates high-precision fine adjustment.
Secure alignment
Two locking screws secure the horizontal position, while an integrated spirit level assists accurate camera alignment.
Kaiser autoDrive software
Store and recall repeatable setups
Kaiser autoDrive allows height positions to be accessed directly or recalled as part of saved projects. Up to 500 projects can be stored, including camera-carrier height and, when used with the compatible RB 570 AX LED lighting unit, brightness settings.
Up
to 500 saved projects
Project descriptions can be stored
Height adjustment in mm, inches or pulses
Direct camera-carrier height control
Project list can be edited and sorted
German or English interface
K5725
Technical specification
Column height
216 cm / 85
in.
Column
cross-section
12 × 8 cm / 4.7 × 3.1
in.
Maximum load
Approx. 15 kg / 33
lbs.
Camera mounting
plate
13 × 13 cm / 5.1 × 5.1
in.
Mounting
thread
Exchangeable 1/4 in. /
3/8 in.
Height
adjustment
Motorised
Scope of delivery
Supplied as a complete motorised column assembly. Kaiser lists the column with camera carrier, control unit, cable remote control, various connection cables, mounting accessories and Kaiser autoDrive control program on USB stick as included.
SKU
CODE:K5725
rePRO
System
Kaiser K5725 RSP Xtra autoDrive Column
A professional motorised column for the Kaiser rePRO system, designed for precise and repeatable camera positioning. The camera carrier can be controlled from a PC or laptop using Kaiser autoDrive software, or directly from the supplied cable remote control. Stored height positions can be recalled with approximately 1/100 mm repeat accuracy, while the motorised camera carrier supports loads of approximately 15 kg for substantial professional reproduction camera setups.
Computer-controlled positioning
Motorised height adjustment can be controlled using the Kaiser autoDrive program from a connected PC or laptop.
Repeatable height positions
Stored height positions can be recalled with approximately 1/100 mm repeat accuracy for consistent camera placement.
Approx. 15 kg load
The camera carrier supports a maximum load of approximately 15 kg, accommodating substantial reproduction camera setups.
Kaiser autoDrive
Precise motorised height control
The cast aluminium camera carrier is moved vertically by a motorised drive. Adjustment speed remains constant regardless of load, while the self-limiting worm-gear mechanism holds the selected height position precisely.
Automatic end switching is controlled by magnetic sensors. The column can be operated from the Kaiser autoDrive control program or using the supplied cable remote control, which provides slow and fast travel speeds in both directions.
Control features
PC /
laptop control
Cable
remote control
Slow
& fast travel speeds
Four
directly storable height positions
Automatic magnetic limit stop
Emergency stop control
Camera carrier
Horizontal and angular adjustment
Horizontal adjustment
The camera carrier moves horizontally on specially shaped parallel guides using a gear rack and hand cranks for right- or left-hand operation.
±90° camera platform
The 13 × 13 cm camera mounting plate can be swivelled through ±90° and incorporates high-precision fine adjustment.
Secure alignment
Two locking screws secure the horizontal position, while an integrated spirit level assists accurate camera alignment.
Kaiser autoDrive software
Store and recall repeatable setups
Kaiser autoDrive allows height positions to be accessed directly or recalled as part of saved projects. Up to 500 projects can be stored, including camera-carrier height and, when used with the compatible RB 570 AX LED lighting unit, brightness settings.
Up
to 500 saved projects
Project descriptions can be stored
Height adjustment in mm, inches or pulses
Direct camera-carrier height control
Project list can be edited and sorted
German or English interface
K5725
Technical specification
Column height
216 cm / 85
in.
Column
cross-section
12 × 8 cm / 4.7 × 3.1
in.
Maximum load
Approx. 15 kg / 33
lbs.
Camera mounting
plate
13 × 13 cm / 5.1 × 5.1
in.
Mounting
thread
Exchangeable 1/4 in. /
3/8 in.
Height
adjustment
Motorised
Scope of delivery
Supplied as a complete motorised column assembly. Kaiser lists the column with camera carrier, control unit, cable remote control, various connection cables, mounting accessories and Kaiser autoDrive control program on USB stick as included.
- Column height: 216 cm (85 in.)
- Cross-section: 12 x 8 cm (4.7 x 3.1 in.)
- Height adjustment: motorized (computerized or via cable remote control)
- Camera mounting plate: 13 x 13 cm (5.1 x 5.1 in.)
- Maximum load: approx. 15 kg (33 lbs.)
- Mounting thread: 1/4” / 3/8”, exchangeable
