Kaiser Illumina Base Plate exe.cutive LED - Dimmable. - Fotospeed
Kaiser Illumina Base Plate exe.cutive LED - Dimmable.
Copylizer
System

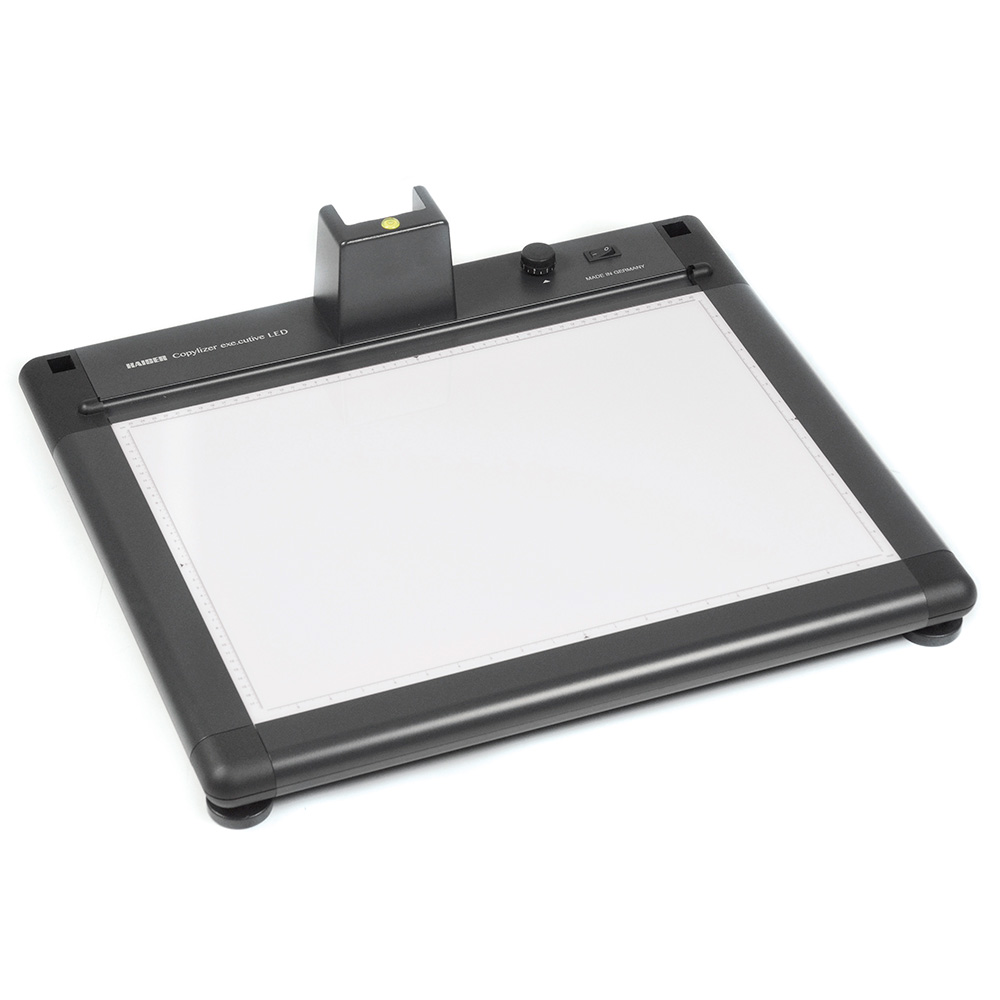

Kaiser K5244 Illumina Base exe.cutive LED
A professional transmitted-light base with 504 SMD LEDs, daylight-balanced 5400 K illumination and high colour rendering. The K5244 provides a large 50.6 × 36 cm illuminated area with continuous brightness adjustment and flicker-free operation. With a colour rendering index greater than 96 and luminance of approximately 13,000 cd/m², it provides controlled transmitted illumination for professional image-capture applications and can be integrated with compatible Kaiser Copylizer and R1 System components.
504 SMD LEDs
Integrated LED illumination provides a large transmitted-light working surface for image-capture applications.
5400 K · CRI >96
Daylight-balanced output with a high colour rendering index supports accurate reproduction of colour and detail.
Continuously dimmable
Brightness can be adjusted continuously to suit different originals and capture requirements.
Transmitted-light surface
Large, controlled LED illumination
The K5244 uses 504 SMD LEDs to create a serviceable illuminated area measuring 50.6 × 36 cm / 19.9 × 14.2 in., larger than tabloid format.
Kaiser specifies a daylight colour temperature of 5400 K, a colour rendering index greater than 96 and luminance of approximately 13,000 cd/m². Brightness is continuously adjustable and the LED system operates flicker-free.
Lighting specification
504
SMD LEDs
5400 K
daylight
CRI
>96
Approx. 13,000 cd/m²
Continuously dimmable
Flicker-free operation
Working area
Large illuminated surface for reproduction work
50.6 × 36 cm illuminated area
The usable transmitted-light area measures approximately 19.9 × 14.2 in., providing space beyond standard tabloid format.
63 × 55 cm overall base
The complete Illumina Base measures approximately 63 × 55 cm / 24.8 × 21.6 in.
Height-adjustable feet
Adjustable feet allow the base to be levelled on the installation surface.
System integration
Built for modular Copylizer setups
70 mm column base
The integrated column base is designed for a 70 mm / 2.8 in. wide
column.
Integrated spirit level
A built-in spirit level assists with setting up and levelling the
system.
R1 System compatibility
Kaiser states that the K5244 can be combined with components of the
Kaiser R1 System.
Modular lighting support
Mounting fixtures are provided for compatible Copylizer surface-lighting
units.
Expand the lighting system
Add optional surface illumination
The K5244 incorporates dedicated mounting fixtures for selected Kaiser Copylizer surface-lighting units, allowing the transmitted-light base to form part of a more complete reproduction-lighting setup.
K5278
RB 5270 DXK5269
RB 5240DK5282
RB 521 ABK5284
RB 525 ASK5244
Technical specification
Product
Illumina Base
exe.cutive LED
Outside
dimensions
Approx. 63 × 55
cm
Outside dimensions
(imperial)
24.8 × 21.6
in.
Illuminated
area
50.6 × 36 cm / 19.9 ×
14.2 in.
LEDs
504 SMD
LEDs
Colour
temperature
5400 K
Colour
rendering
CRI
>96
Luminance
Approx. 13,000
cd/m²
Compatible accessories
Extend the Illumina Base
Kaiser lists the K5278 RB 5270 DX, K5269 RB 5240D, K5282 RB 521 AB and K5284 RB 525 AS surface-lighting units as compatible accessories. The K5292 Pressure Plate and K5294 Metal Plate are also listed for use with the Copylizer and Illumina Base exe.cutive system.
Illumination product
The K5244 is designed for illumination for image capture and can be combined with compatible Kaiser R1 System components to build a complete reproduction setup.
SKU
CODE:K5244
Copylizer
System
Kaiser K5244 Illumina Base exe.cutive LED
A professional transmitted-light base with 504 SMD LEDs, daylight-balanced 5400 K illumination and high colour rendering. The K5244 provides a large 50.6 × 36 cm illuminated area with continuous brightness adjustment and flicker-free operation. With a colour rendering index greater than 96 and luminance of approximately 13,000 cd/m², it provides controlled transmitted illumination for professional image-capture applications and can be integrated with compatible Kaiser Copylizer and R1 System components.
504 SMD LEDs
Integrated LED illumination provides a large transmitted-light working surface for image-capture applications.
5400 K · CRI >96
Daylight-balanced output with a high colour rendering index supports accurate reproduction of colour and detail.
Continuously dimmable
Brightness can be adjusted continuously to suit different originals and capture requirements.
Transmitted-light surface
Large, controlled LED illumination
The K5244 uses 504 SMD LEDs to create a serviceable illuminated area measuring 50.6 × 36 cm / 19.9 × 14.2 in., larger than tabloid format.
Kaiser specifies a daylight colour temperature of 5400 K, a colour rendering index greater than 96 and luminance of approximately 13,000 cd/m². Brightness is continuously adjustable and the LED system operates flicker-free.
Lighting specification
504
SMD LEDs
5400 K
daylight
CRI
>96
Approx. 13,000 cd/m²
Continuously dimmable
Flicker-free operation
Working area
Large illuminated surface for reproduction work
50.6 × 36 cm illuminated area
The usable transmitted-light area measures approximately 19.9 × 14.2 in., providing space beyond standard tabloid format.
63 × 55 cm overall base
The complete Illumina Base measures approximately 63 × 55 cm / 24.8 × 21.6 in.
Height-adjustable feet
Adjustable feet allow the base to be levelled on the installation surface.
System integration
Built for modular Copylizer setups
70 mm column base
The integrated column base is designed for a 70 mm / 2.8 in. wide
column.
Integrated spirit level
A built-in spirit level assists with setting up and levelling the
system.
R1 System compatibility
Kaiser states that the K5244 can be combined with components of the
Kaiser R1 System.
Modular lighting support
Mounting fixtures are provided for compatible Copylizer surface-lighting
units.
Expand the lighting system
Add optional surface illumination
The K5244 incorporates dedicated mounting fixtures for selected Kaiser Copylizer surface-lighting units, allowing the transmitted-light base to form part of a more complete reproduction-lighting setup.
K5278
RB 5270 DXK5269
RB 5240DK5282
RB 521 ABK5284
RB 525 ASK5244
Technical specification
Product
Illumina Base
exe.cutive LED
Outside
dimensions
Approx. 63 × 55
cm
Outside dimensions
(imperial)
24.8 × 21.6
in.
Illuminated
area
50.6 × 36 cm / 19.9 ×
14.2 in.
LEDs
504 SMD
LEDs
Colour
temperature
5400 K
Colour
rendering
CRI
>96
Luminance
Approx. 13,000
cd/m²
Compatible accessories
Extend the Illumina Base
Kaiser lists the K5278 RB 5270 DX, K5269 RB 5240D, K5282 RB 521 AB and K5284 RB 525 AS surface-lighting units as compatible accessories. The K5292 Pressure Plate and K5294 Metal Plate are also listed for use with the Copylizer and Illumina Base exe.cutive system.
Illumination product
The K5244 is designed for illumination for image capture and can be combined with compatible Kaiser R1 System components to build a complete reproduction setup.
