Kaiser RS 1 Copy Stand "microdrive" - Fotospeed
Kaiser RS 1 Copy Stand "microdrive"
RS 1 Copy
Stand
Kaiser K5507 RS 1 “microdrive”

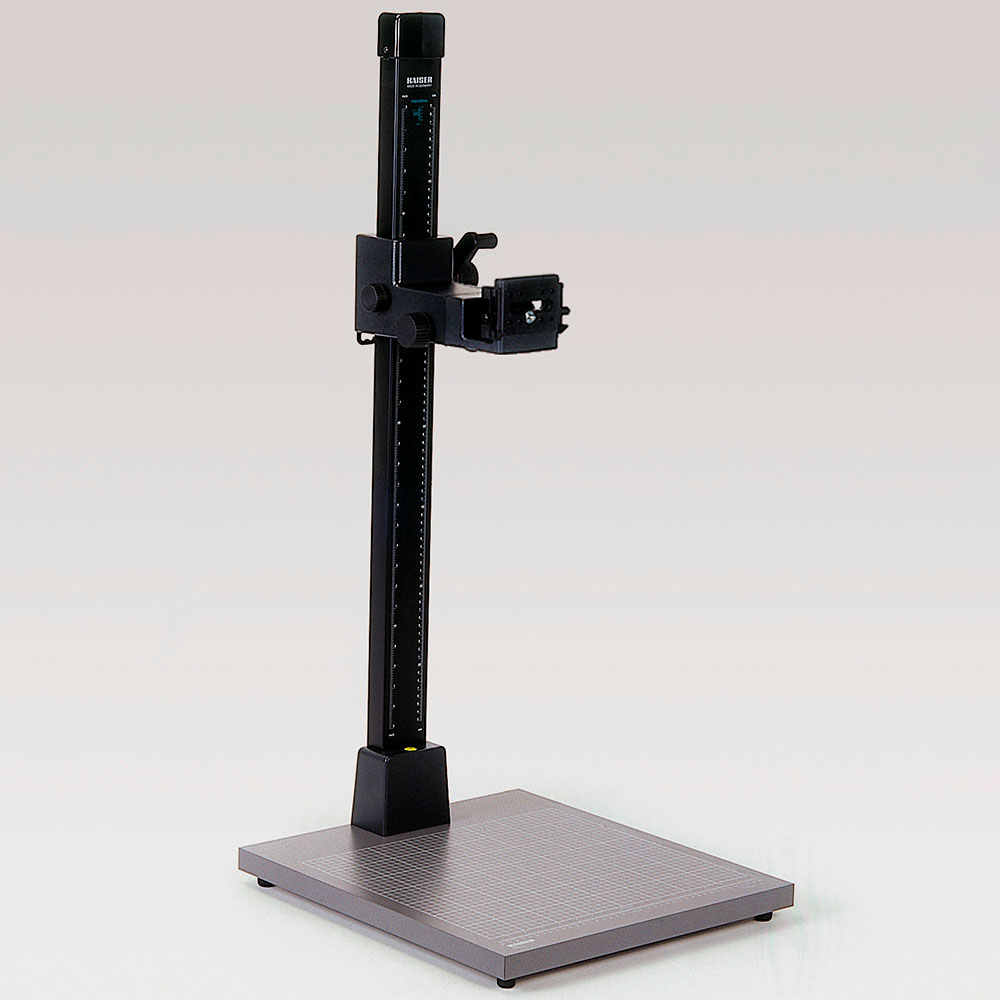

The Kaiser K5507 RS 1 “microdrive” combines a non-reflective matt grey base board with an extra-wide, vibration-resistant aluminium column and hand-cranked rack-and-pinion height adjustment. A separate 1:6 fine drive provides precise control for very small positioning adjustments. The height-adjustment mechanism is counterbalanced by a built-in scroll spring, while a locking screw secures the selected camera height once the required position has been set.
Rack-and-pinion adjustment
Hand-cranked rack-and-pinion height adjustment provides positive, controlled movement along the column.
Super-fine positioning
An additional fine drive with 1:6 step-down transmission allows very small and precise height adjustments.
Counterbalanced movement
A built-in scroll spring counterbalances the height-adjustment mechanism for controlled positioning.
Precise & controlled
Fine control with the Microdrive system
The K5507 uses a hand-cranked rack-and-pinion mechanism for height adjustment. The system is additionally counterbalanced by a built-in scroll spring, helping provide controlled movement of the camera carrier along the column.
For more precise positioning, the Microdrive incorporates an additional fine drive with a 1:6 step-down transmission. A locking screw prevents inadvertent changes to the selected height once the required position has been set.
The non-reflective matt grey base board features a printed fine grid, while height-adjustable feet and a spirit level in the column base assist with setting up the stand. Centimetre and inch scales are provided on the extra-wide dull black anodised aluminium column.
Key details
Rack-and-pinion height adjustment
1:6
fine-drive transmission
Built-in scroll-spring counterbalance
Height
locking screw
Centimetre & inch column scales
K5507
Technical specification
Base
board
Approx.
450 × 500 × 28
mm
Base board
(imperial)
17.7 ×
19.7 × 1.1
in.
Column
height
Approx.
1,000 mm /
39.4 in.
Column
finish
Dull black
anodised
aluminium
Height
adjustment
Hand-cranked rack
& pinion
Fine
adjustment
1:6
step-down
transmission
Counterbalance
Built-in
scroll
spring
Height
lock
Locking
screw
Designed for precise height control. The combination of rack-and-pinion adjustment, 1:6 fine drive and locking screw allows the selected camera height to be adjusted precisely and then secured in position.
SKU
CODE:K5507
RS 1 Copy
Stand
Kaiser K5507 RS 1 “microdrive”
The Kaiser K5507 RS 1 “microdrive” combines a non-reflective matt grey base board with an extra-wide, vibration-resistant aluminium column and hand-cranked rack-and-pinion height adjustment. A separate 1:6 fine drive provides precise control for very small positioning adjustments. The height-adjustment mechanism is counterbalanced by a built-in scroll spring, while a locking screw secures the selected camera height once the required position has been set.
Rack-and-pinion adjustment
Hand-cranked rack-and-pinion height adjustment provides positive, controlled movement along the column.
Super-fine positioning
An additional fine drive with 1:6 step-down transmission allows very small and precise height adjustments.
Counterbalanced movement
A built-in scroll spring counterbalances the height-adjustment mechanism for controlled positioning.
Precise & controlled
Fine control with the Microdrive system
The K5507 uses a hand-cranked rack-and-pinion mechanism for height adjustment. The system is additionally counterbalanced by a built-in scroll spring, helping provide controlled movement of the camera carrier along the column.
For more precise positioning, the Microdrive incorporates an additional fine drive with a 1:6 step-down transmission. A locking screw prevents inadvertent changes to the selected height once the required position has been set.
The non-reflective matt grey base board features a printed fine grid, while height-adjustable feet and a spirit level in the column base assist with setting up the stand. Centimetre and inch scales are provided on the extra-wide dull black anodised aluminium column.
Key details
Rack-and-pinion height adjustment
1:6
fine-drive transmission
Built-in scroll-spring counterbalance
Height
locking screw
Centimetre & inch column scales
K5507
Technical specification
Base
board
Approx.
450 × 500 × 28
mm
Base board
(imperial)
17.7 ×
19.7 × 1.1
in.
Column
height
Approx.
1,000 mm /
39.4 in.
Column
finish
Dull black
anodised
aluminium
Height
adjustment
Hand-cranked rack
& pinion
Fine
adjustment
1:6
step-down
transmission
Counterbalance
Built-in
scroll
spring
Height
lock
Locking
screw
Designed for precise height control. The combination of rack-and-pinion adjustment, 1:6 fine drive and locking screw allows the selected camera height to be adjusted precisely and then secured in position.
