Kaiser RSD Copy Stand, Base Plate (WxHxD): 680x38x570mm. - Fotospeed
Kaiser RSD Copy Stand 1.2", Base Plate (WxHxD): 680x38x570mm.
RD System

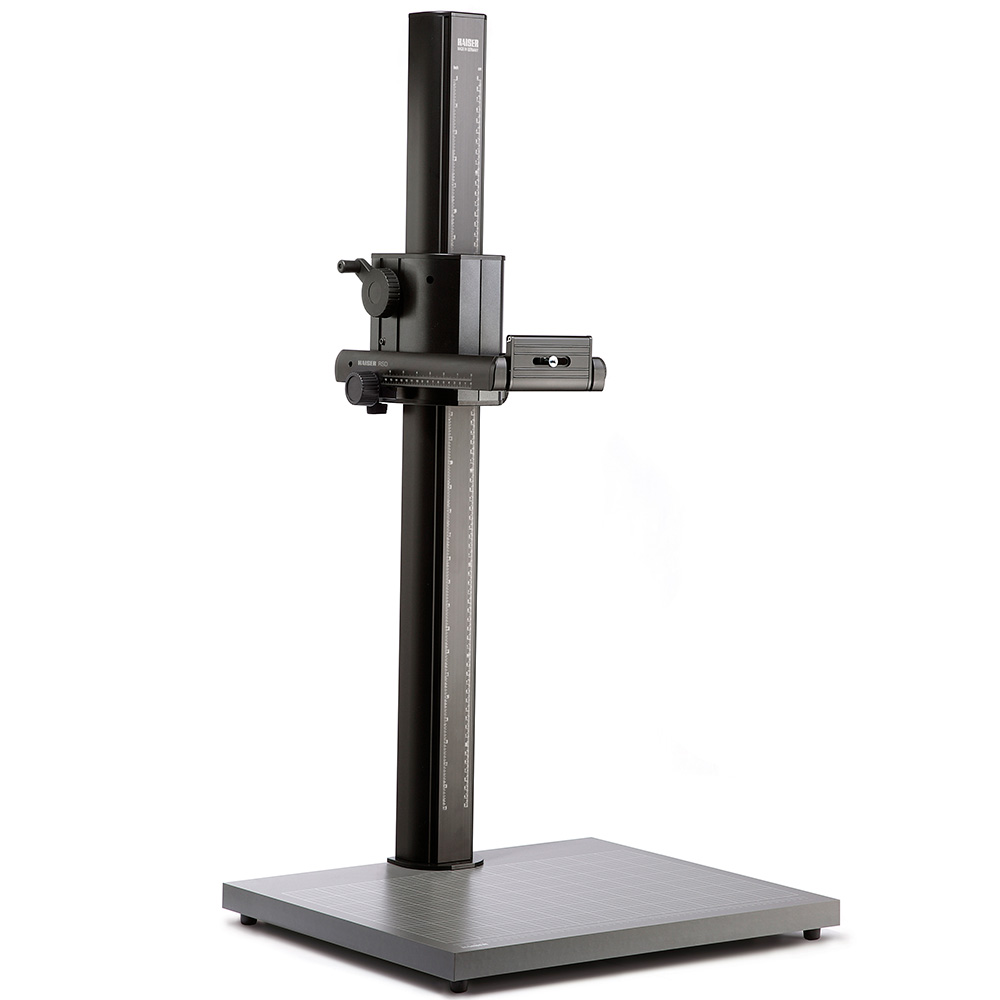

Kaiser K5602 RSD Copy Stand
A hand-cranked RD System copy stand with a 1.20 m aluminium column, large non-reflective base plate and horizontally adjustable camera carrier. The K5602 combines rack-and-pinion height adjustment with a built-in coil-spring counterbalance, horizontal camera positioning and a tiltable camera mounting plate. Its aluminium camera carrier can be adjusted horizontally by approximately 16 cm, while the mounting plate tilts through ±90° and supports camera equipment weighing up to 8 kg.
Hand-cranked height adjustment
Rack-and-pinion height adjustment is operated by hand crank for direct and controlled vertical camera positioning.
16 cm horizontal adjustment
The aluminium camera carrier can be adjusted horizontally by approximately 16 cm using rack-and-pinion parallel guides.
Counterbalanced movement
A built-in coil spring counterbalances the height-adjustment mechanism for smoother camera-carrier movement.
See it in operation
Kaiser RD System
Manual vertical control
Hand-cranked rack-and-pinion adjustment
The K5602 uses hand-cranked rack-and-pinion height adjustment to move the camera carrier along the 1.20 m column. A built-in coil spring provides counterbalance, helping make vertical positioning easier to control.
Once the required height has been selected, a blocking screw prevents accidental changes to the adjusted position.
Height-control features
Hand-cranked operation
Rack-and-pinion adjustment
Built-in coil-spring counterbalance
Height
locking screw
Camera carrier
Horizontal and angular adjustment
Rack-and-pinion movement
The aluminium camera carrier moves horizontally over approximately 16 cm using rack-and-pinion parallel guides.
Left- or right-hand operation
Horizontal adjustment can be operated from either side to suit different working arrangements.
Secure positioning
Two blocking screws prevent unintended changes to the selected horizontal position.
Camera mounting
Flexible camera alignment
±90° tilting plate
The camera mounting plate can be tilted through ±90°.
Horizontal screw adjustment
The connecting screw itself can also be adjusted horizontally.
Reversible mounting thread
Interchangeable 1/4 in. / 3/8 in. thread for compatible camera
equipment.
8 kg loading capacity
Supports camera equipment weighing up to 8 kg.
Working surface
Large non-reflective base plate
The K5602 includes a large matt-grey, non-reflective base plate measuring approximately 680 × 570 mm. A printed positioning grid and centimetre and inch scales assist with accurate placement of originals.
Base features
Matt-grey non-reflective surface
Printed positioning grid
Centimetre & inch scales
Height-adjustable feet
Integrated spirit level
K5602
Technical specification
Base plate
680 × 38 × 570
mm
Base plate
(imperial)
26.8 × 1.5 × 22.4
in.
Column height
1.20 m / 3.9
ft.
Column
cross-section
105 × 74 mm / 4.1 ×
2.9 in.
Loading
capacity
8 kg / 17.6
lbs.
Camera mounting
plate
130 × 78 mm / 5.1 ×
3.1 in.
Mounting
thread
1/4 in. / 3/8 in.
reversible
Recommended lighting
Kaiser recommends the RB 5070 DX2 and compatible R1-system copy lighting units for RD System copy stands. Lighting is available separately and is not included with the K5602.
